　		 Chin I Machinery Co., Ltd. --- 精一機械股份有限公司



SPEC. TYPE

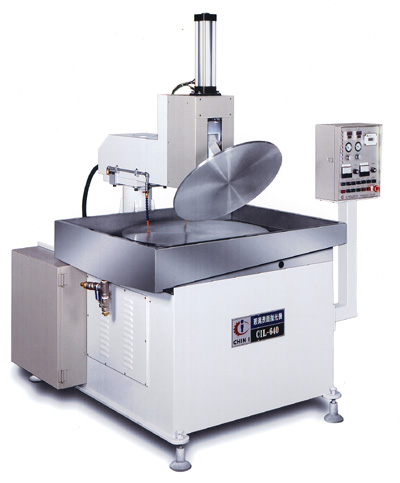

CIL-640
CIL-700
(mm) Dia of pressure plate
Ø 64
Ø 700
(mm) Size of lapping plate
Ø 820
Ø 1000

(mm)Max size of products
450*450
490*490
Angle of swinging arm
60°
60°
Oscillation stroke r.p.m.
MAX.50 MIN.20
MAX.50 MIN.20
Adjosting strck of pressure
80
80
Tilting angle
90°
90°
Lap plate R.P.M
MAX.80 MIN.20
MAX.70 MIN.20
(HP) Oscillation Motor
3
3
(HP) Lap plate Motor
5
5
(mm) M/C size
1400*2000*2000
1580*2180*2000
(kg) M/C weight
1500
2000
(V)Power
S3 220/380
S3 220/380
(HP)
9.5
9.5
