Applicability
Glass Thickness: 5-19mm
Processing sizes: 350-1500mm
Inner are: 50mm(min)
Outer: 100mm(min)
Capacity: 0,0. :600mm Circle Glass thickness: 8mm
Grinding shape: semicircle(3 timrs) 120 pcs/8h


specification

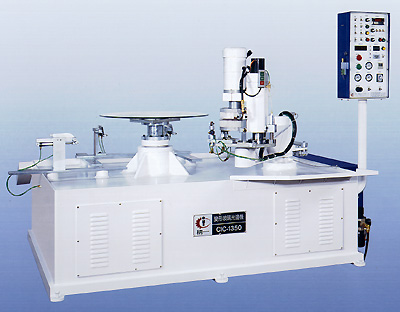

CIC-1350

Driver Motor

5
Power Soorce
220V / 380V
Power
4
Work Space
2460*2410*1780
Machine net weight
1300
Frequency
50/60
Compressor Air
6
Options
真空泵冷卻水桶
Features:
· Edges ground are smooth & without joint.
· With grinding stone automatic exchange control
· Grinding number of circles is selectable according to the quality.
· Grinder arms increase & decrease the pressure & speed automatically in ascent & decline.

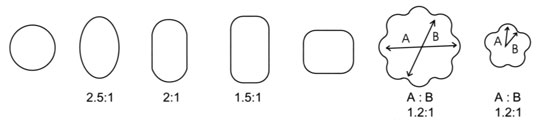

· Grinding shapes of glass sides. (attached drawings)
· Grinding long & short sides ratio: Ellinse-3:1、 shame of athletic ground-2.5:l、 Chamfered rectangle-2: 1
Examples(attached drawings)
