　		 Chin I Machinery Co., Ltd. --- 精一機械股份有限公司

NBS. PAT. N0. ：61816 NEW
Applicability
Glass Thickness： 5-1 2mm
Processing sizes： 350-1350. 450-1450 600-1600mm
Skew side width ： 0-30mm
Grinding angle is adjustable in 0-10
Inner are： 40mm(min)
Outer： 40mm(min)
Capacity： 0,0. :600mm Circle Glass thickness: 8mm
Grinding width : 20mm
120 pcs/8h



specification

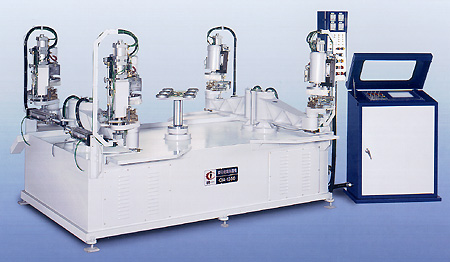

CIA-1350

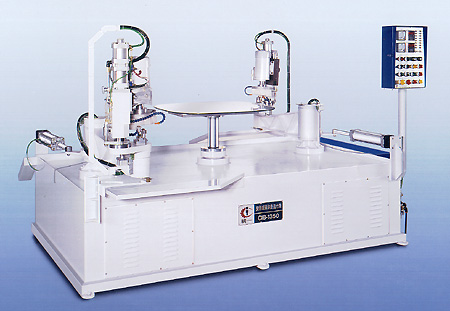

CIB-1350

Driver Motor
11
7
Power Soorce
220V / 380V
220V / 380V
Power
10
6
Work Space
3400*2500*1900
2700*2600*1700
Machine net weight
2200
1600
Frequency
50/60
50/60
Compressor Air
6
6
Options
真空泵冷卻水桶
真空泵冷卻水桶
Features：
· Skew sides ground are glossy & without Joint
· With four ems in grinding operation at the sane tinecapacito increases.
· Any portion of periphery can be taken at will for grinding
· The width of skew sides ground is consistent & never affected by inner or outer arc and shapes
· The consunption of grinding stone induces autonatically.
· Touch screen.
· Grinder urns increase & decrease the pressure automatically in ascent & decline
· Grinding long & short sides ratio: Ellipse-3:1、 Shape of athletic ground-2.5:1、 Chamfered rectangle-2:l
Examples(attached drawings)
