Flexible glass cutting machine

Chin I Machinery Co., Ltd. --- 精一機械股份有限公司

NBS.RAT.NO:093239
Applicability
Cutting Thickness:0.2mm-8mm
.Cutting speed:MAX. 1M/sec
.Precision:Size adjustment 0.01mm
.Cutting Accuracy:±0.05

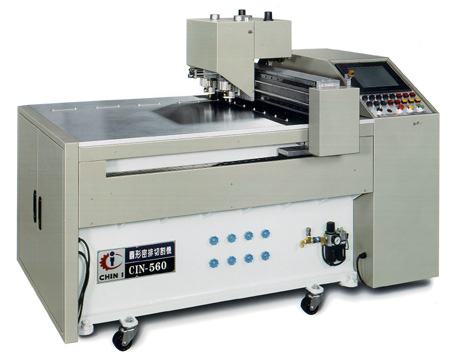

specification CIN560 CIN730
O ptimizing the cutting area 560*560 730*730
Round glass diameter MAXIMUM Ø 100mm MAX Ø 100mm MAX

Straight glass size MAXIMUM

920*690 1225*920
Glass size MINIMUM 60*60 60*60
Driver Motor 4HP 4HP
Power Soorce 220V / 380V 220V / 380V
Consome comp .Ressor Air 26 26
Work AMP
13 13
Work Space 1830*1330*1300 2135*1505*1300
Work High 920 850
Work High -660 -660
Compressor Air 5 5
Options 有移動輪 無移動輪
Features:
Metal grinding table
The glass is fixed by vaccum
Automatic vaccum table and blow function
Recipes in memory
Adjustable straight cutting speed.(x- 75m/min,y- 85m/min)
Adjustable round cutting speed
Single or vertical double directions cuttings selection
Correction for deviation of return cutting wheel
Correction of origin
Amending of origin
Intermission in cutting
Touch screen
Notice of inputting wrong size
Pressure,cutting deepness & capacity of oil are adjustable even empty-handed
Reduce cutting procedure
Avoid glass split
Twin cutting heads with two pressure controlled by pls
Smooth incision
Accuracy of the joint of axle
Size adjusting for round glass cutting
Automatic oil releasing
Cutting purpose
一、 Rectangle:16 kinds of programing for cutting line
二、Optimizing individual circular cutting area
