Chin I Machinery Co., Ltd. --- 精一機械股份有限公司

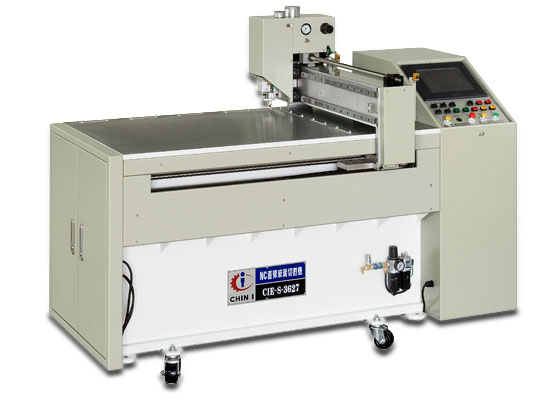

CIE SPECIFIC CUTTER FOR SYSTEM GLASSES
NBS.RAT.NO.:093239
Cutting Thickness:0.2-5mm
Cutting Purpose
LCD,Touch-panel,miniature reflectiv lens,colored lens of stage, lens of relective ball,reflective lens of fax, coiper & scanner, glare shield of computer & every varietu of multi-layered plated mirrors of radiation-resistance with membrane etc.
PDF download
CIE-S直線玻璃切割機 (滾珠螺桿系列)1070111



specification
CIE-S-3627
CIE-S-4230
CIE-S-4836
CIE-S-5345

Glass size MAXIMOM (mm)

920*690
1070*770
1225*920
1350*1150
Glass size MINIMUM (mm)
60*60
60*60
60*60
60*60
DRIVER MOTOR
6HP
6HP
6HP
6HP
POWER SOORCE
220V / 380V
220V / 380V
220V / 380V
220V / 380V
Consome of comp.REssor AIR (1/MIN)
26
26
26
26
WORK SPACE
30
30
30
30
Machinc size (mm)   1835*1220*1400   2020*1340*1400   2140*1450*1400   2240*1650*1400
Flaking Machine size (mm)   1060*780*815   1210*860*815   1350*1010*815   1490*1235*815
Work High (mm) 920 920 920 920
Vaccum pressure (mm/hg) -660 -660 -660 -660
BLOW (HP)   0.5   0.5   0.5   0.5
COMPRESSED AIR (5kg/cm) 5 5 5 5
OPTIONS Flaking machine   Flaking machine+ Roller frame

Feature:
Metal grinding table.
The glass is fixed by vacuum.
65 recipes in memory.
There are 8 sizes for cutting at the same time.
Cutting speed is adjustable at will.
Single or vcrtical double directions cuttings is selectable.
Correction for deviation of retum cutting wheel.
Correction of origin.
Intermission in cutting.
Touch screen.
Notice of inputing wrong sizes.
Pressure,cutting deepness & capacity of oil are adjustable even empty-handed.
2 C.C.D cameras & monitor provided.
Easy operation for those not well-versed.

Cutting speed:MAX.0.75M/sec
Precision:Size adjustment 0.01mm
Cutting Accuracy:±0.05mm
