Chin I Machinery Co., Ltd. --- 精一機械股份有限公司
| Applicability |
| Glass thickness：0.2-8mm |
| Ovter arc：5mm(min) |
| Inner arc：30mm(min) |
| Status：irregular, round |
| Purpose：rearview mirror, cosmetic
mirror, optical & gift mirror. |
| 1-8 sec/pc (depending on the
shapes) |
|
| specification |

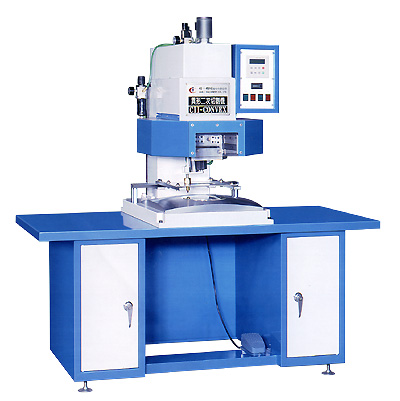

CII-200 |
CII-450 |
| Gutting Maximum |
Ø 200 |
Ø 450 |
|
Driver Motor |
1HP |
1HP |
| Power Soorce |
220V |
220V |
| Work AMP |
3A |
3A |
| Work Space |
2100*800*1600 |
2100*800*1600 |
| Work High |
785 |
785 |
Compressor Air
|
5 |
5 |
| Machine net weight |
200 |
200 |
| Options |
進出料滾筒 |
進出料滾筒 |
| Features： |
| Diamond holder is exchengable between spherical and flat surface
cutting. |
| Cutting line is even |
| Cut is glossy,but not rough |
| No space in cutting swivels, joint is precise |
| Cutting speed is auto shift |
| Cutting speed is adjustable according to the shape |
| Cutting schdule can be set up at will (in one circle) |
| Mold is not necessary for round cutting |
| Cutting oil releases automatically |
| The ratio of long & short side for cutting 3:1 |
| Metal grinding table |
| Cutting Examples(attached drawings) |
 |
|
|
