Chin I Machinery Co., Ltd. --- 精一機械股份有限公司

CIJ CUTTER FOR ROUND SUPER-RATIO IRREGULAR FLAT GLASS
Applicability
Glass thickness:0.2mm-8mm
Outer arc:5mm(min)
Inner arc:30m/m(min.)
Status:round, super-rqatio irregular
Purpose:rearview mirror, cosmetic mirror, optical & gift mirror.
1-10 sec/pc (depending on the shapes)



specification
CIJ-500
Length of vertical cut
500mm
Gutting Maximum
Ø 200
Ø 450

Driver Motor

1HP
1HP
Power Soorce
220V
220V
Work AMP
3A
3A
Work Space
2100*1350*1600
2100*1350*1600
Work High
785
785
Compressor Air
5
5
Machine net weight
300
300
Options
進出料滾筒
進出料滾筒
Features:
Diamond holder is changable on different arc of cutting Concave & convex spherical surface.
Diamond holder is exchengable between spherical and flat surface cutting.
The cutting head is active, and the cutting is light.
The cutting line is even and the cut is glossy.
Extremely thin glass is also availacle for cutting
No space in cutting swivels, joint is precise.
Cutting speed is auto shift.
Cutting speed is adjustable according to the shape
Mold is not necessary for round cutting
Cutting oil releases automatically.
The ratio of long & short side for cutting is not restricted.(not exceeding cutting limitation)
Common shapes are available for cutting.
Metal grinding table

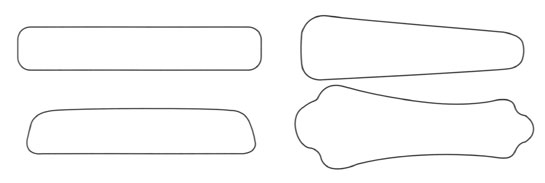

Cutting Examples(attached drawings)
