CNC IRREGULAR CUTTER GLASSES
CIP,ACIP-S〔BALL SCREW SYSTEM 7 CCD〕
NBS.RAT.NO.:093239
NBS.RAT.NO.:093239
Cutting Purpose
LCD,Touch-panel,miniature reflectiv lens,colored lens of
stage, lens of relective ball,reflective lens of fax, coiper &
scanner, glare shield of computer & every varietu of
multi-layered plated mirrors of radiation-resistance with
membrane etc.
Specification

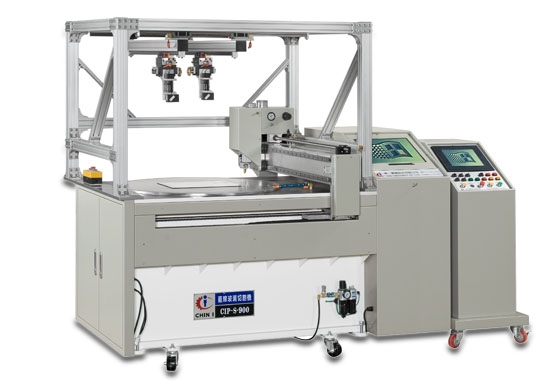

CIP-S-900

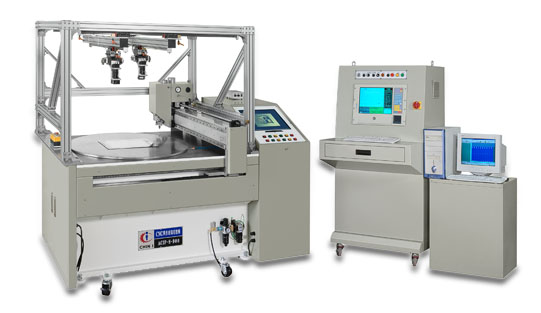

ACIP-S-900
Glass size MAXIMOM
600*600(對角線)
600*600(對角線)
Glass size MINIMUM
60*60
60*60
DRIVER MOTOR
5PH
5PH
POWER SOORCE
220V / 380V
220V / 380V
Consome of comp.REssor Air
26
26
WORK AMP
15
15
WORK SPACE
2600*1450*1850
2600*1450*1850
WORK HIGH
920
920
Vaccum pressure
-660
-660
Comperssor Air
5
5
OPTIONS
有移動輪
有移動輪
Feature:
Metal grinding table.
The glass is fixed by vacuum.
4000 recipes in memory.
There are 16 sizes for cutting at the same time.
Cutting speed is adjustable at will.
Single or vcrtical double directions cuttings is selectable.
Correction for deviation of retum cutting wheel.
Correction of origin.
Intermission in cutting.
Touch screen.
Notice of inputing wrong sizes.
Pressure,cutting deepness & capacity of oil are adjustable even
empty-handed.
2 C.C.D cameras & monitor provided.
Easy operation for those not well-versed.
Curve cutting system.
CCD minimum cross distance is 150mm.
Is air absorption area is 260mm × 260mm.
Cutting speed:MAX.0.75M/sec
Precision:Size adjustment 0.01mm
Cutting Accuracy:±0.05mm
