Applicability
Glass Thickness： 3-12mm
Processing sizes： 250-1500mm
Inner are： 10mm(min)
Outer： 40mm(min)
Capacity： 0,0. :600mm Circle Glass thickness: 8mm
Grinding shape: semicircle(3 timrs) 2400 pcs/8h


specification
CID-1500

Driver Motor
1
Power Soorce
220V
Power
0.5
Work Space
700*1580*1490
Machine net weight
650
Frequency
50/60
Compressor Air
6
Features：
· The cut is glossy & not rough for seeing the consumption of grinding stone in grinding operation
· The pressure of cutting point centralizes for cutting the glass thoroughly by one stroke
· Cutting speed is adjustable according to the shapes
· Stencil can be made of wooden board
· Cutting long & short sides ratio:Ellipse-3:1、 Shape of athletic ground-2.5:l、 Chamfered rectangle-2:l

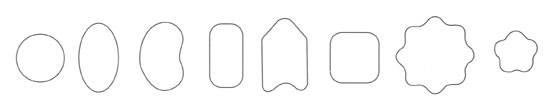

Examples(attached drawings)
